# Transforming Trajectories

Trajectories can be transformed from one coordinate system to another and moved within a coordinate system using the `relativeTo` and the `transformBy` methods. These methods are useful for moving trajectories within space, or redefining an already existing trajectory in another frame of reference.

### Note

Neither of these methods changes the shape of the original trajectory.

## The `relativeTo` Method

The `relativeTo` method is used to redefine an already existing trajectory in another frame of reference. This method takes one argument: a pose, (via a `Pose2d` object) that is defined with respect to the current coordinate system, that represents the origin of the new coordinate system.

For example, a trajectory defined in coordinate system A can be redefined in coordinate system B, whose origin is at (2, 2, 30 degrees) in coordinate system A, using the `relativeTo` method.

```java
Pose2d bOrigin = new Pose2d(2, 2, Rotation2d.fromDegrees(30));
Trajectory bTrajectory = aTrajectory.relativeTo(bOrigin);
```

![](https://content.gitbook.com/content/3GkjSf3vnBih0vqJQqmk/blobs/QqVpvlBKzUIADE0R7AHu/relative-to.png)

In the diagram above, the original trajectory (`aTrajectory` in the code above) has been defined in coordinate system A, represented by the black axes. The red axes, located at (2, 2) and 30° with respect to the original coordinate system, represent coordinate system B. Calling `relativeTo` on `aTrajectory` will redefine all poses in the trajectory to be relative to coordinate system B (red axes).

## The `transformBy` Method

The `transformBy` method can be used to move (i.e. translate and rotate) a trajectory within a coordinate system. This method takes one argument: a transform (via a `Transform2d` object) that maps the current initial position of the trajectory to a desired initial position of the same trajectory.

For example, one may want to transform a trajectory that begins at (2, 2, 30 degrees) to make it begin at (4, 4, 50 degrees) using the `transformBy` method.

```java
Transform2d transform = new Pose2d(4, 4, Rotation2d.fromDegrees(50)).minus(trajectory.getInitialPose());
Trajectory newTrajectory = trajectory.transformBy(transform);
```

![](https://content.gitbook.com/content/3GkjSf3vnBih0vqJQqmk/blobs/X5LzCtpiwhHikNnYGpMF/transform-by.png)

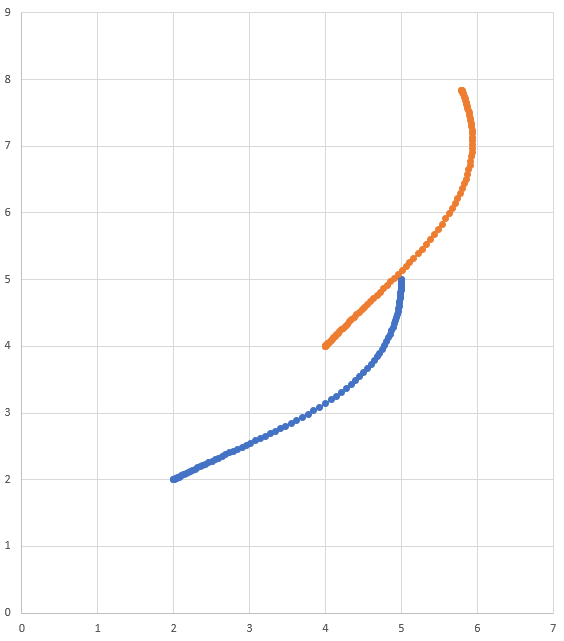

In the diagram above, the original trajectory, which starts at (2, 2) and at 30° is visible in blue. After applying the transform above, the resultant trajectory’s starting location is changed to (4, 4) at 50°. The resultant trajectory is visible in orange.
